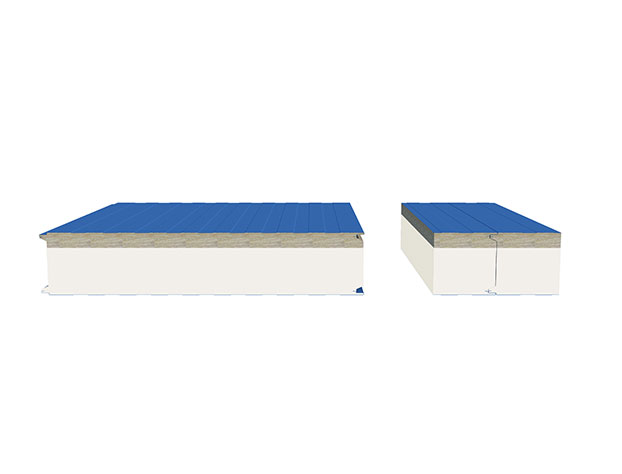

The PNS Brand sandwich panel Combine the non-combustibility, high temperature resistance of rock wool and the thermal insulation of polyurethane, it effectively isolates the heat and smoke of the fire from spreading and transferring, and hinders the spread of fire.
| Product name | 1+1 Rockwool &PUR Sandwich Panel | 1+1 Rockwool &PIR Sandwich Panel |
|
Model |
1+1 RW/PUR1000 |
1+1 RW/PIR1000 |
|
Core material |
Rockwool &PUR |
Rockwool &PIR |
|
Density |
80-120kg/m3; 40-42kg/m3 |
80-120kg/m3; 45-48kg/m3 |
|

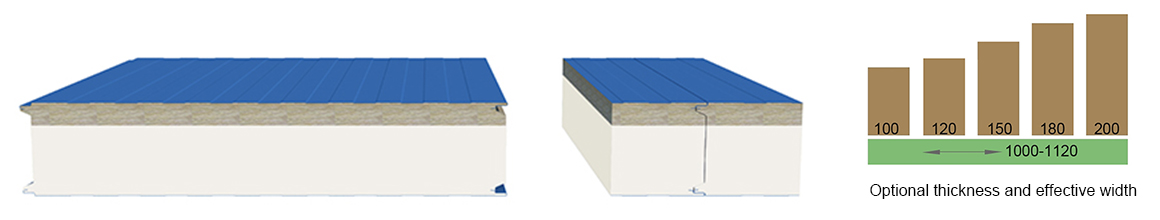

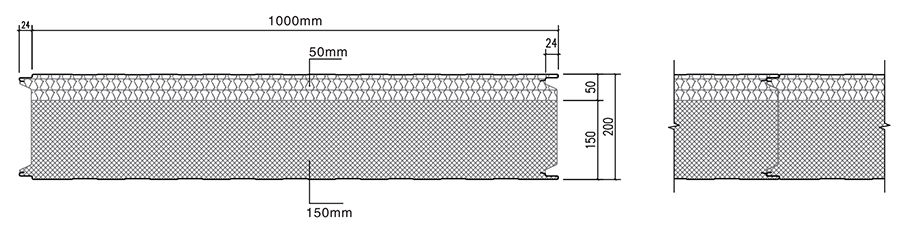

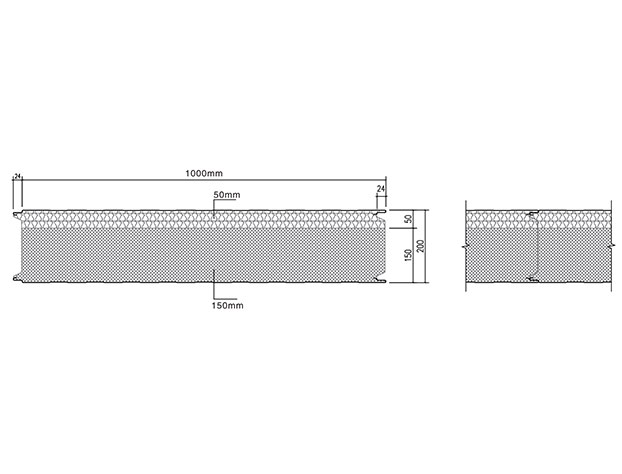

Thickness of panel |
100/120/150/180/200mm (Regular PU/PIR 100/150mm+50mm rockwool) |
|
|
Both sides |
Color coated galvanized steel, Aluminum zinc plate, stainless steel, aluminium steel |
|
|
Thickness of steel plate |
0.4-0.8mm |
|
|
Coating |
PVDF/HDP/SMP/PE |
|
|
Effective width |
1000-1120mm |
|
|
Length of panel |
Max.11.8m |
|
|
Fireproof grade |
Rockwool : A PIR: B1 PUR: B2 |
|
