Cold Storage Sandwich Wall Ceiling Panels

Cold storage sandwich panel for cold storage and cold room

Cold Storage Sandwich Wall & Ceiling Panels（100-200mm）

Through prestaging the special airtight rubber in wedge-shaped structure between internal and external layer of PNS Brand cold storage panel, so that the adjacent panel of the inner and outer layers of cold steel as one organic,greatly overcome the thermal expansion and contraction phenomenon of cold storage panel,make the whole air tightness performance is equivalent to the effect of seamless steel plate welding.

Send E-mail Get Price

Product Features：

Light weight and beautiful appearance, the assembly board can be disassembled and reinstalled in another place is easy and fast;

Product parameters :

Product Name	Cold Storage Sandwich Wall & Ceiling Panels（100-200mm)
Model	CS100-200/PUR	CS100-200/PIR
Metal sheet	0.4-0.8mm 1) color prepainted galvanized steel sheet 2) Aluminium zinc sheet, 3) stainless steel sheet, 4)Aluminum Magnesium Manganese sheet
Thickness	50 / 75 / 80 /100 / 120 / 150 /175 / 200mm
Effective width	920mm, 1000mm, 1120mm (Regular 1000mm)
Length of panel	Customized
Core material	PU/PUR (Polyurethane)	PIR ( polyisocyanurate )
Density	40~42 KG/M3	45~50 KG/M3
Thermal conductivity (25℃) （25℃）	≤0.022/(m.k)	≤0.0195w/(m.k)
Heat-resistant range	-185℃ ~ 110℃（PUR foam)	-196℃ ~ 205℃(PIR foam)
Heat-resistant range	Long-term continuous use below 85℃ (PUR sandwich panel)	Long-term continuous use below 150℃ (PIR sandwich panel)
Closed cell rate	≥97%	≥97%
Compression strength	185 Kpa	220 Kpa
Water absorption rate	2.5-3%	up to 0.9%
Fireproof grade	B2	B1
Combustion performance	≥ D	≥ B
Color of steel plate	Usual : White gray RAL9002 or Customized
Painting	PVDF,SMP,HDP, PE

Polyurethane fire test

Reference table of temperature and cold storage panels’ thickness

Thickness of panels	Temperature difference between Indoor and outdoor of cold storage	length of panels	Temperature of keeping in cold storage
Thickness of panels		length of panels	Temperature of keeping in cold storage
mm	℃	m	25	20	15	10	5	0	-2	-8	-15	-20	-25	-30	-35	-40	-45
50	30	2-8
75	40	2-8
100	50	2-12
120	60	2-12
125	60	2-12
150	70	2-12
180	80	2-12
200	90	2-12

Allowable vertical load, span and heat transfer coefficient of PNS’ cold storage panels(allowable deformation≤L/200)

Thickness of panels	Heat transfer coefficient U-Value , W/(M2K)	Weight of panel(kg/m2)
Thickness of panels	Heat transfer coefficient U-Value , W/(M2K)	PPGI :0.5+0.5	PPGI :0.6+0.6	P=kg/m2	PPGI :0.5+0.5	PPGI :0.6+0.6
100mm	0.21	12.48	14.17	L=M	6.20	6.55
120mm	0.18	13.42	15.12	L=M	7.10	7.50
150mm	0.14	14.38	16.06	L=M	8.40	8.80
175mm	0.12	15.28	17.02	L=M	9.50	10.00
200mm	0.11	16.18	17.98	L=M	10.20	10.80

Above core material :PU (40-42KG/M3 )

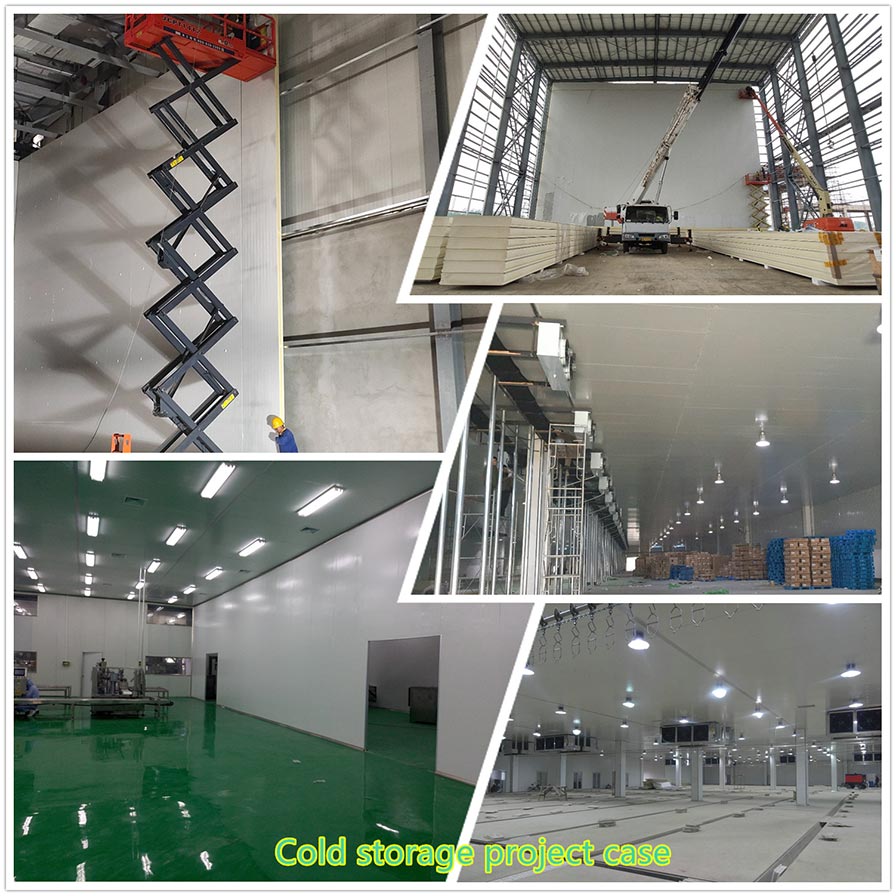

Below are project cases of cold storage :
