The rock wool/glass wool external wall panel (PUR/PIR double side seal) of Henan Panels Industry Co.,Ltd. is used for horizontal or vertical installation of external walls. External wall panels with seams are recommended to be installed horizontally. Seamless wall panels can be installed horizontally or vertically.
share:

Product Description:

The rock wool/glass wool external wall panel (PUR/PIR double side seal) of Henan Panels Industry Co.,Ltd. is used for horizontal or vertical installation of external walls. External wall panels with seams are recommended to be installed horizontally. Seamless wall panels can be installed horizontally or vertically.

Product Features:

(1) Good fire performance, fireproof level: grade A non-combustible

(2) Polyurethane side seals on both sides block the water absorption path of the core material and prolong the useful life;

(3) Unique plug-in interface design, stronger resistance to negative wind pressure;

(4) Hidden nail connection, no exposed screws on the surface.

(5) The wavy shape of the surface makes the appearance of the building particularly graceful.

(6) Green and environmental protection, no formaldehyde;

Product Name Rockwool/Glasswool Exterior Wall Sandwich Panel with PU/PIR sealing side

External Metal Plate

Thickness: 0.4-0.8mm

Coating :PVDF/HDP/SMP/PE

Inner Metal Plate

Thickness:0.4-0.7mm



Coating:SMP/PE

Panel Thickness

50/75/80/100/120/150mm

Effective Width

500-1000mm

Length

Customized

Density

Rockwool : 80-120kg/m3,

Glasswool : 64kg/m3

PU: 40-42kg/m3

Application areas:

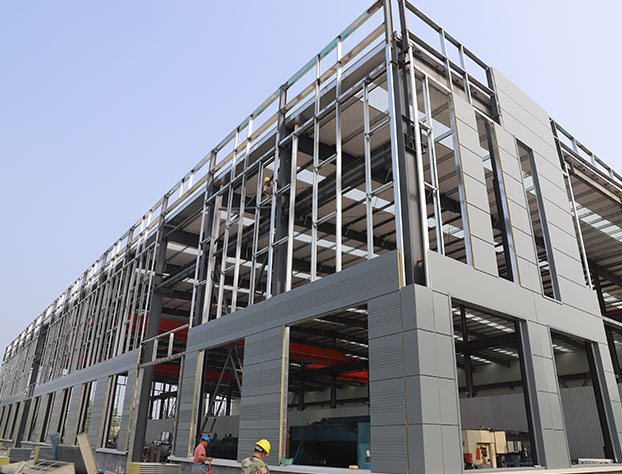

It is suitable for the walls of large public buildings, industrial plants and other buildings that require fire protection.
